A family/friend requested if I could install a Reversing Camera for his Ford Mondeo. The challenge with this vehicle was that he wanted to keep the OEM radio, while also using the camera in the radio. Unfortunatly this work could not be done at my work which. I also did this work in my own time as he installed an external tap for my so I can clean my cars for free - hence the favour being returned.
Reversing Camera

The kit
2025-05-19
The kit that was chosen was brought from Empirical In-Car Technology. This kit allows users to continue to use their OEM radio.

OBD
2025-05-19

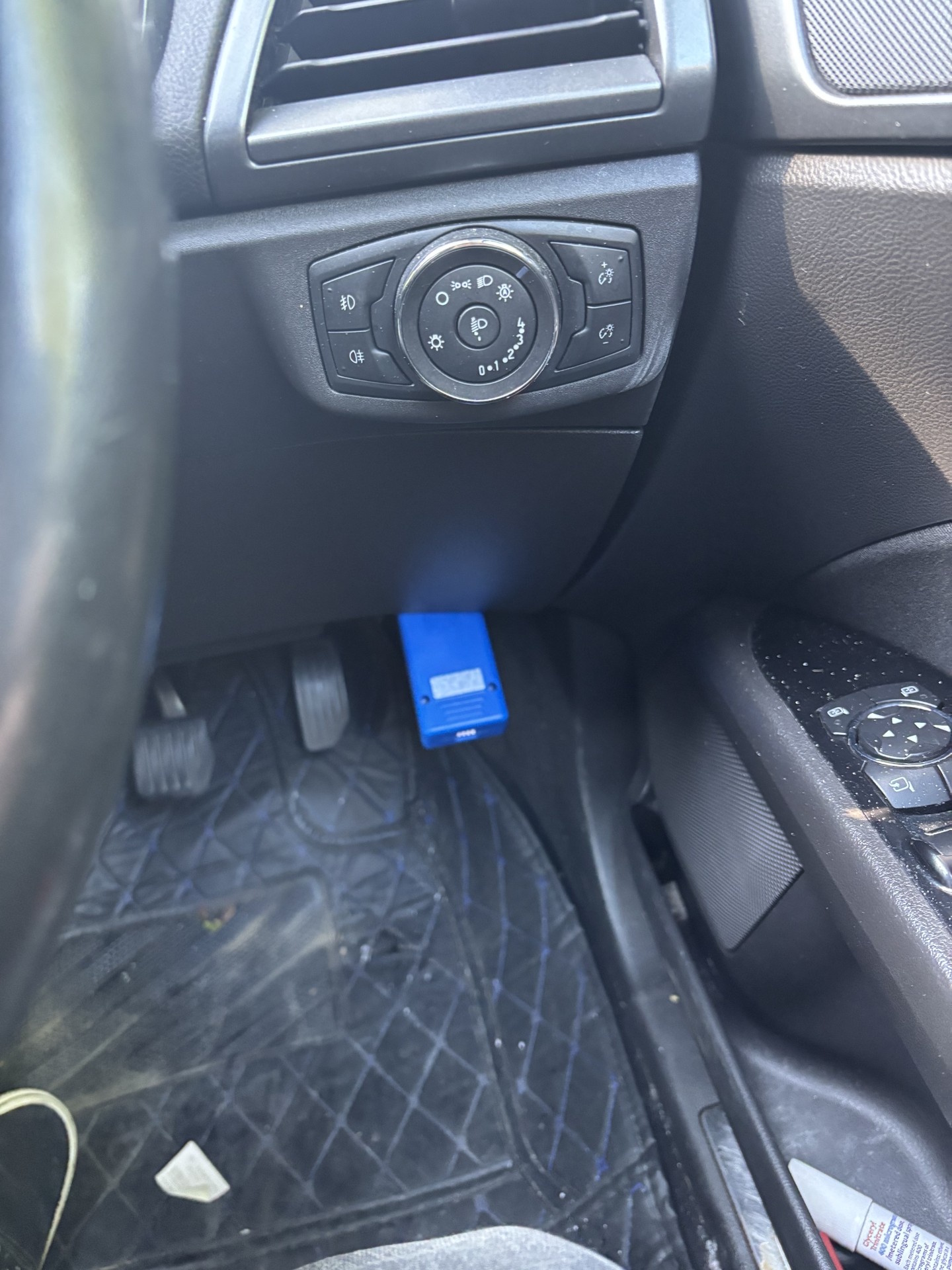

First step was to connect the OBD to update the radio unit, allowing the reversing camera to work.

Radio Removal
2025-05-19

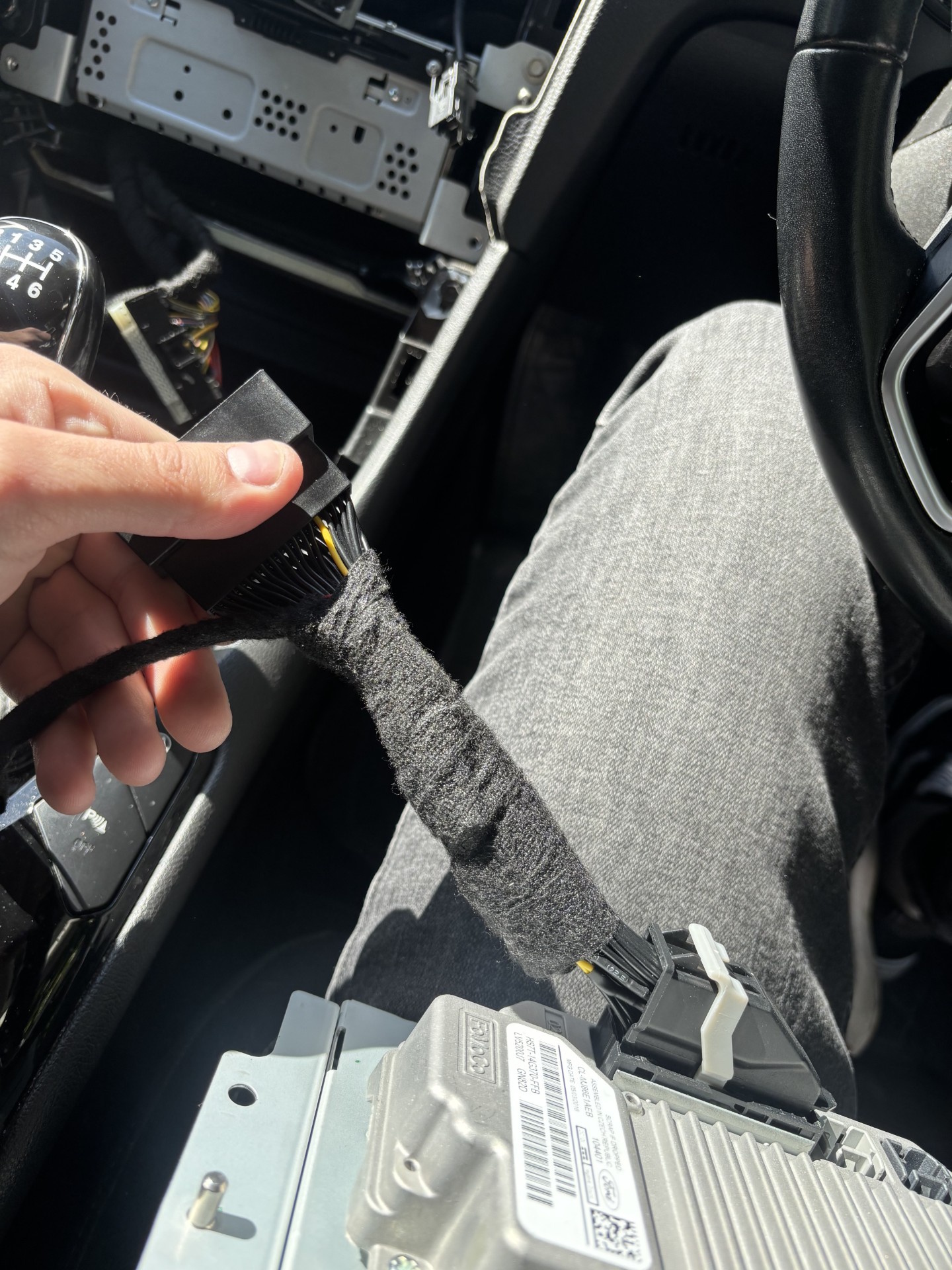

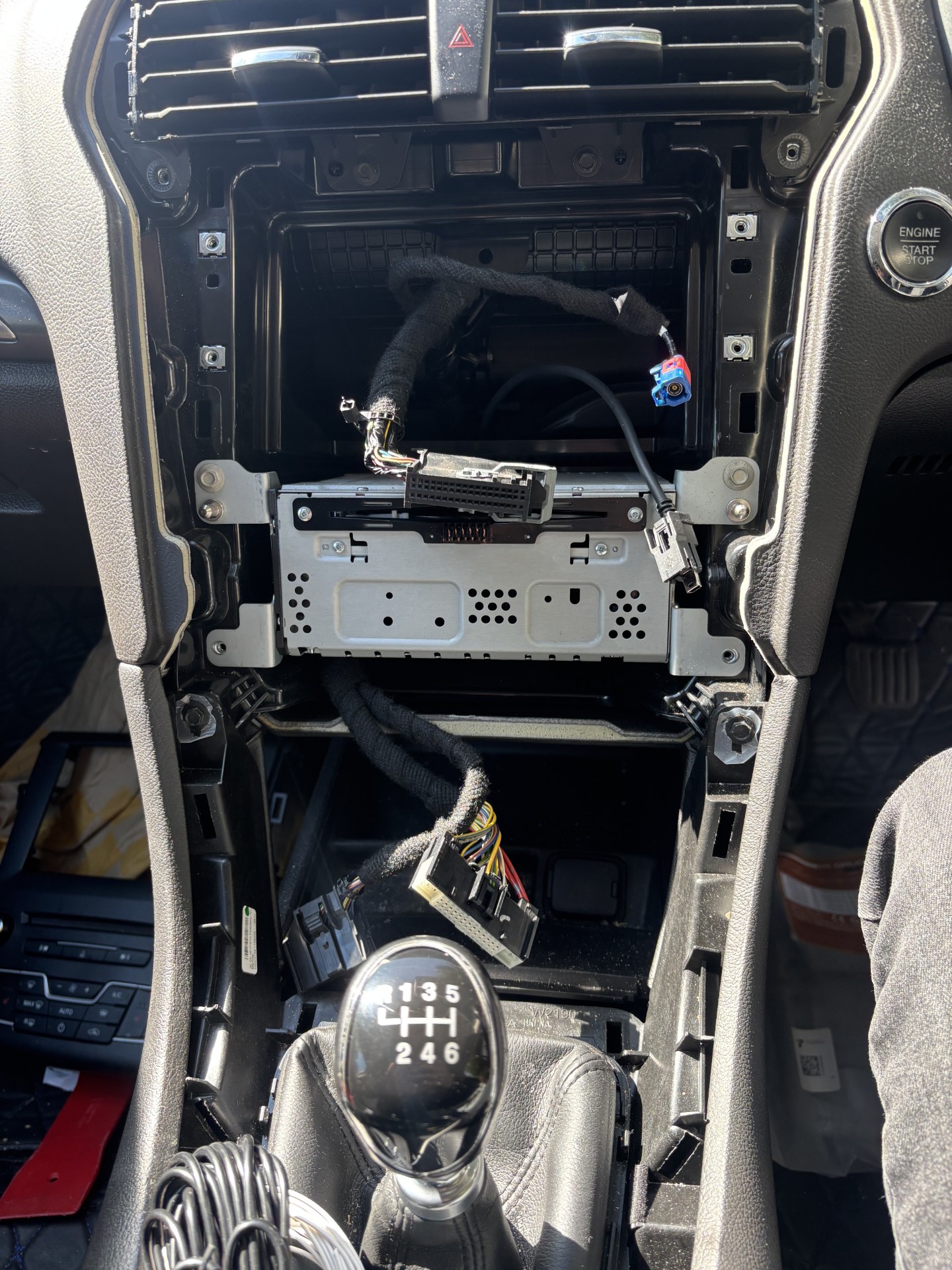

Next involved removing the radio from the car to get access to the wires to connect the T-Harness.

T-Harness
2025-05-19

Reversing Cable
2025-05-19

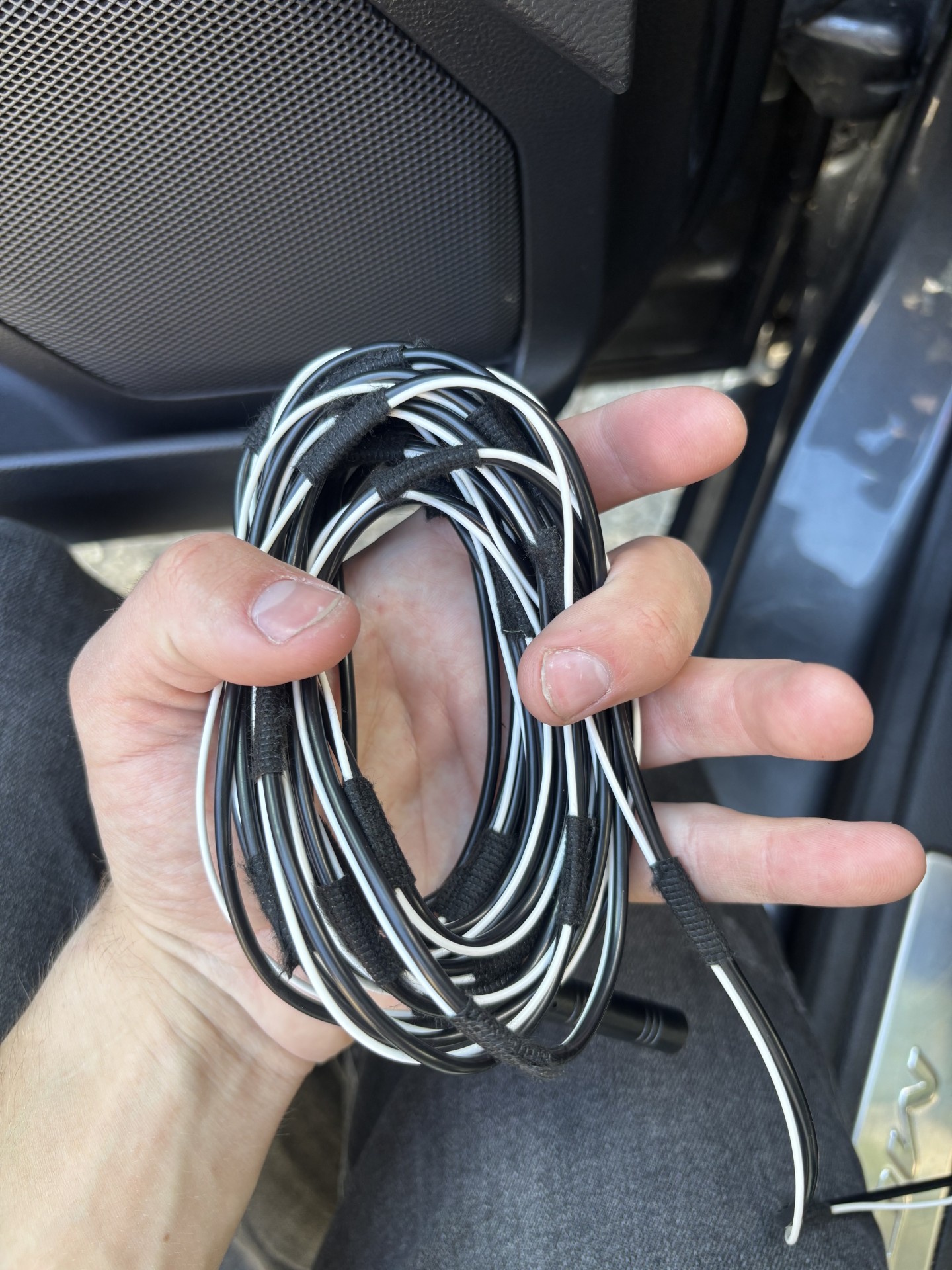

In this image is the reversing camera cable which I taped up to keep the wires tidy and clean making the installation process smoother.

Wire Loom
2025-05-19

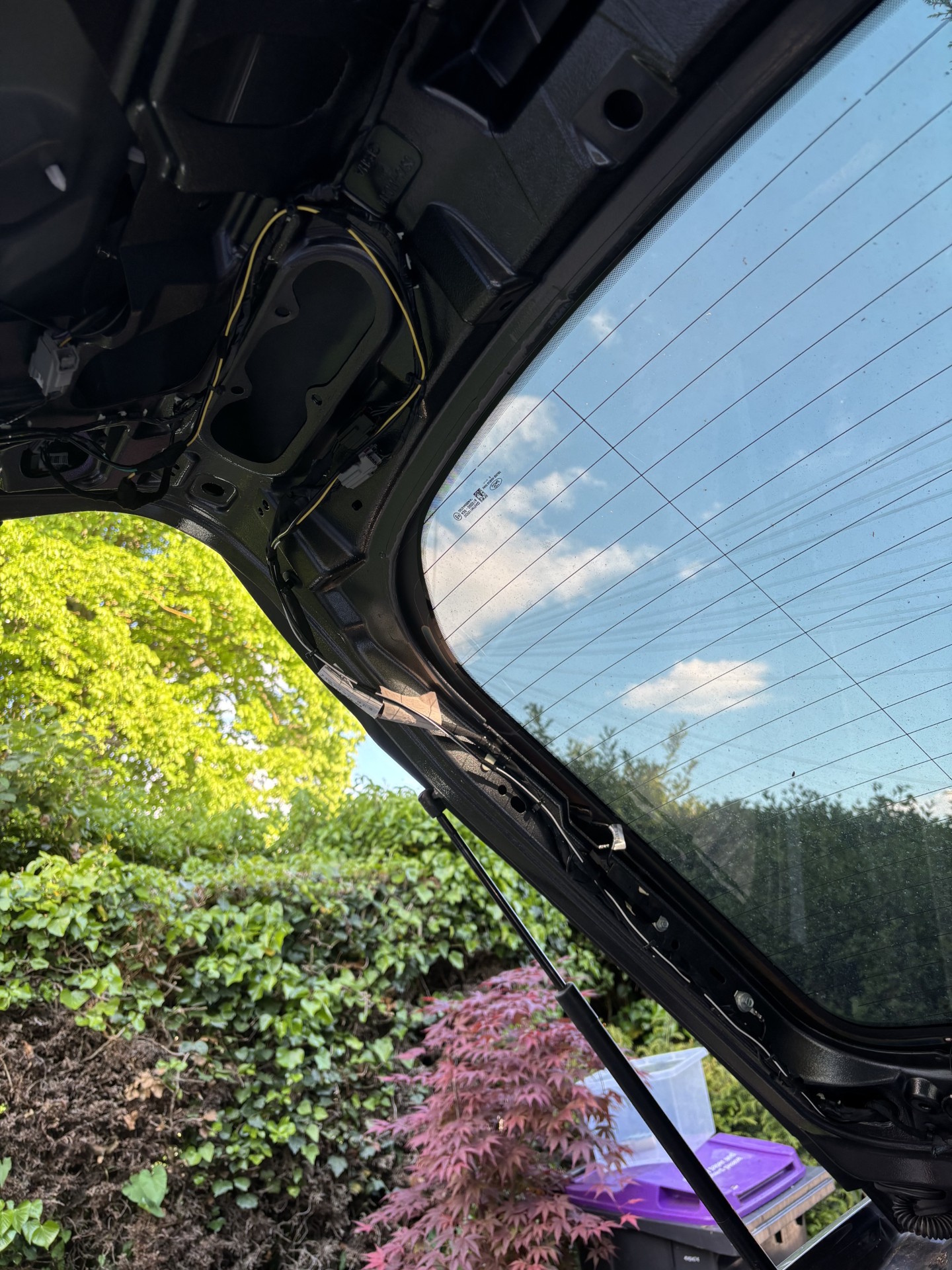

To prevent cable chaithing

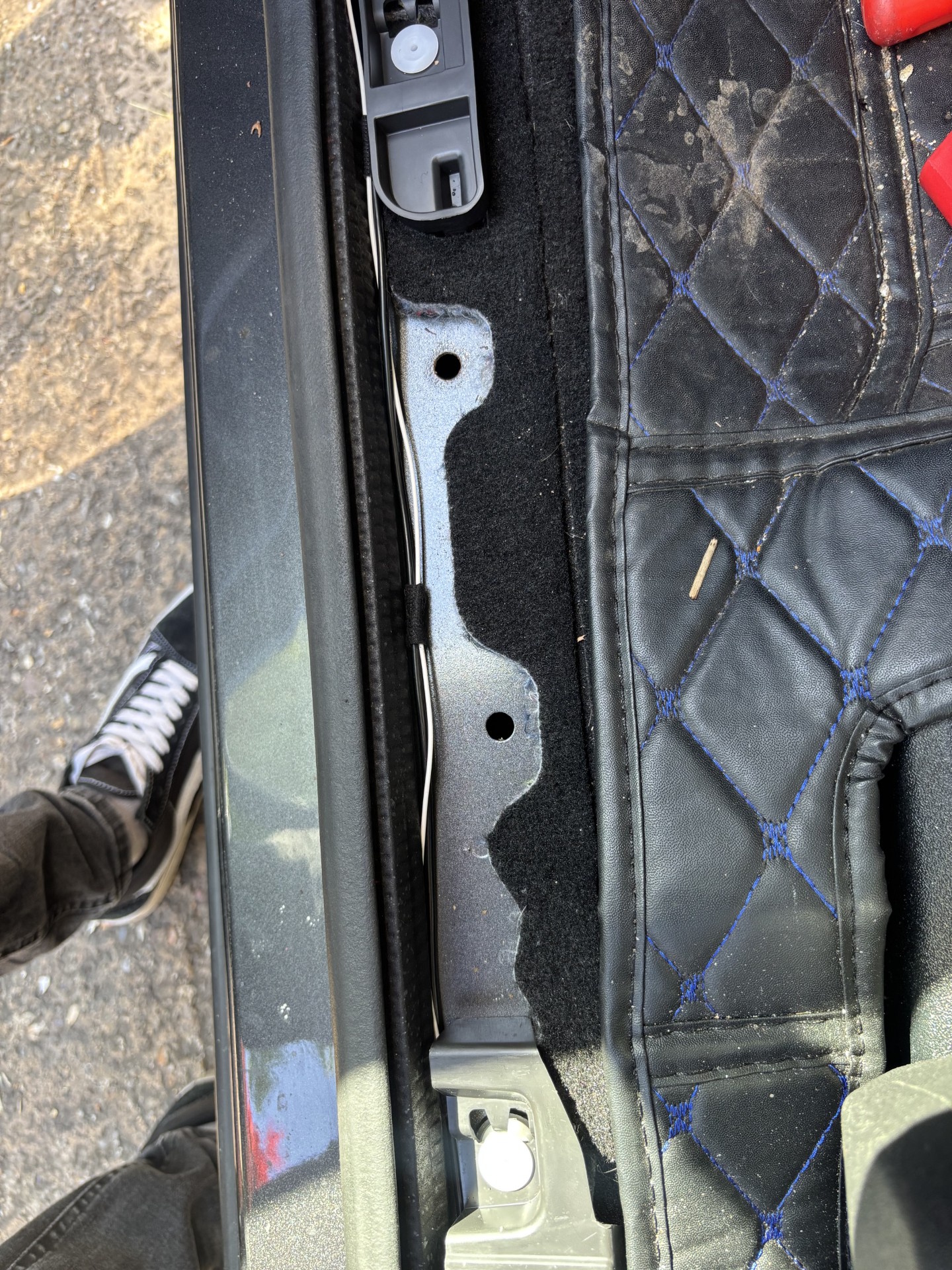

Wire placement
2025-05-19

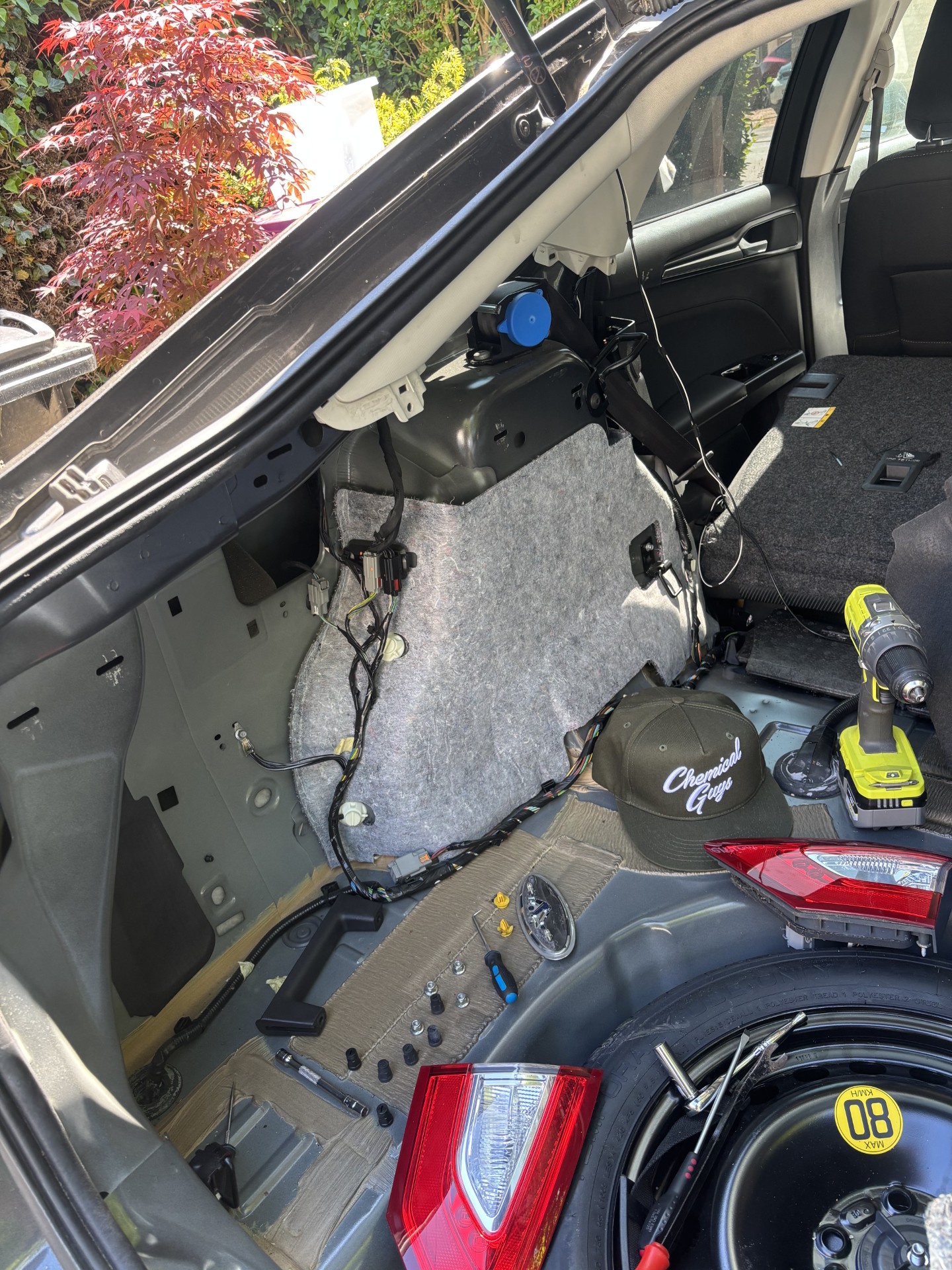

Trim Removal
2025-05-19

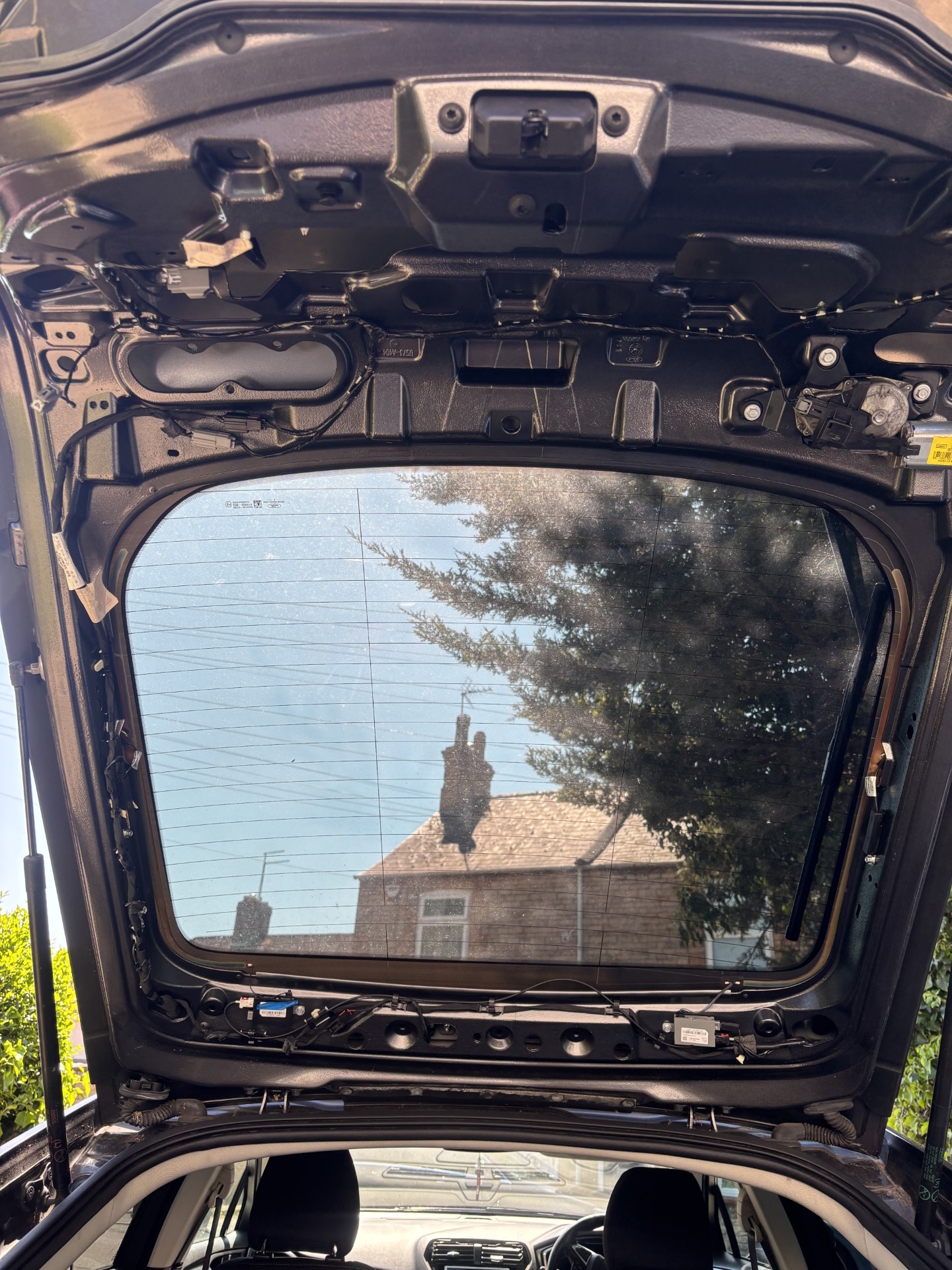

Removed the trim to help make it more easy to install the camera correctly.

Trim removal Two
2025-05-19

Wire Clean-Up & Extended
2025-05-19

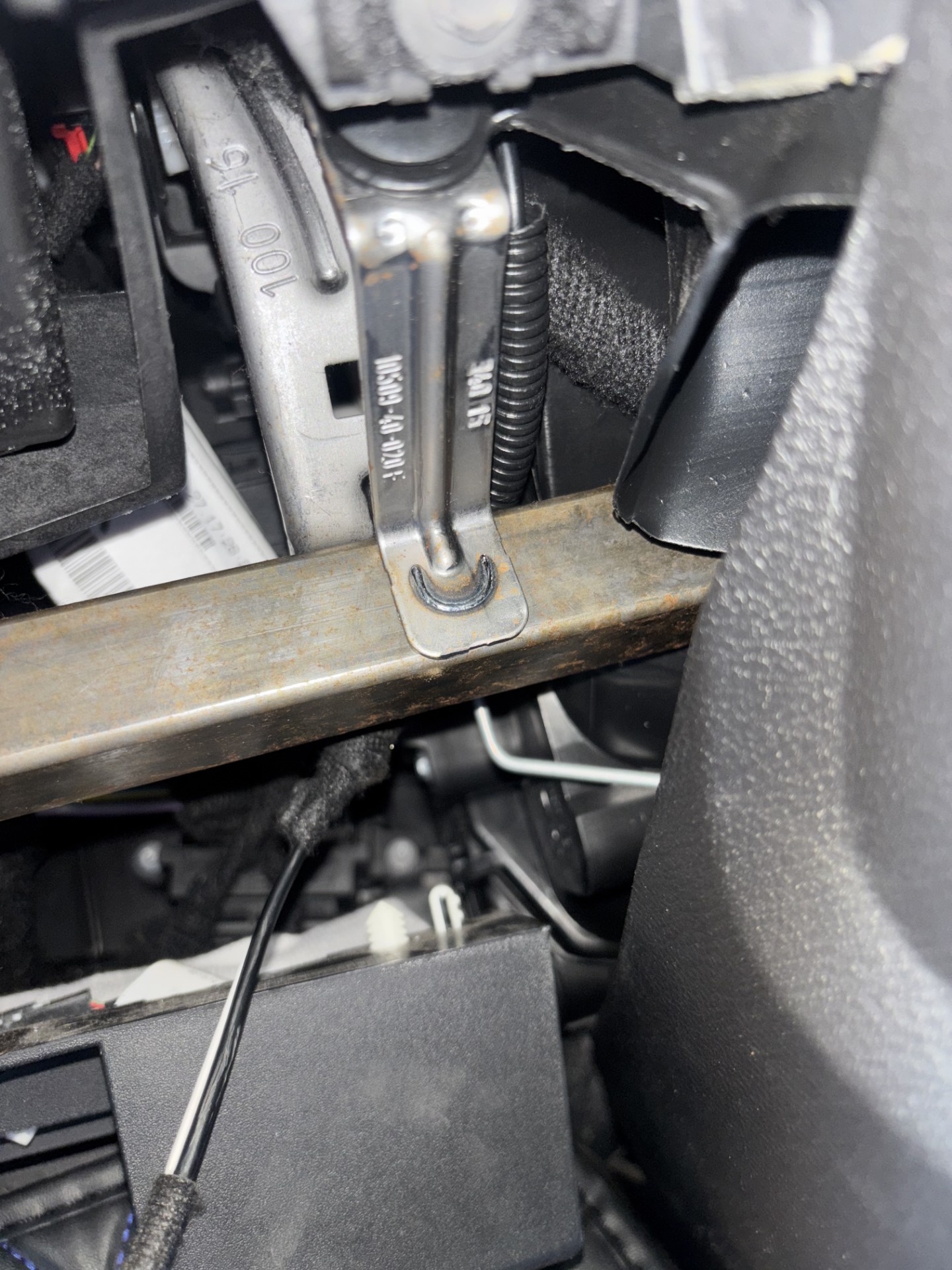

I wanted to keep the wires installed as cleanly as possible. This also lead me to extend the wire with my own cable.

Drilling the hole
2025-05-19

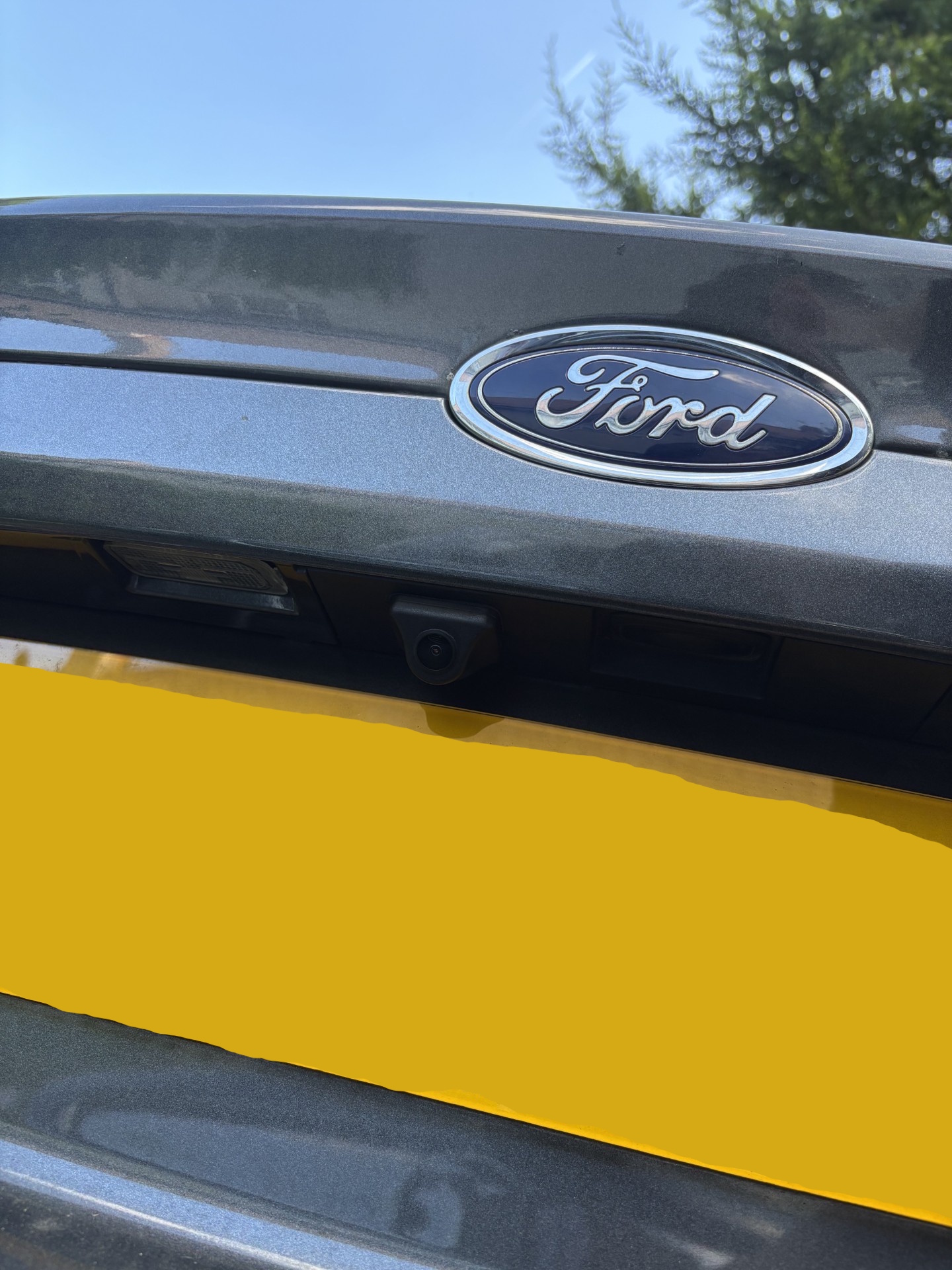

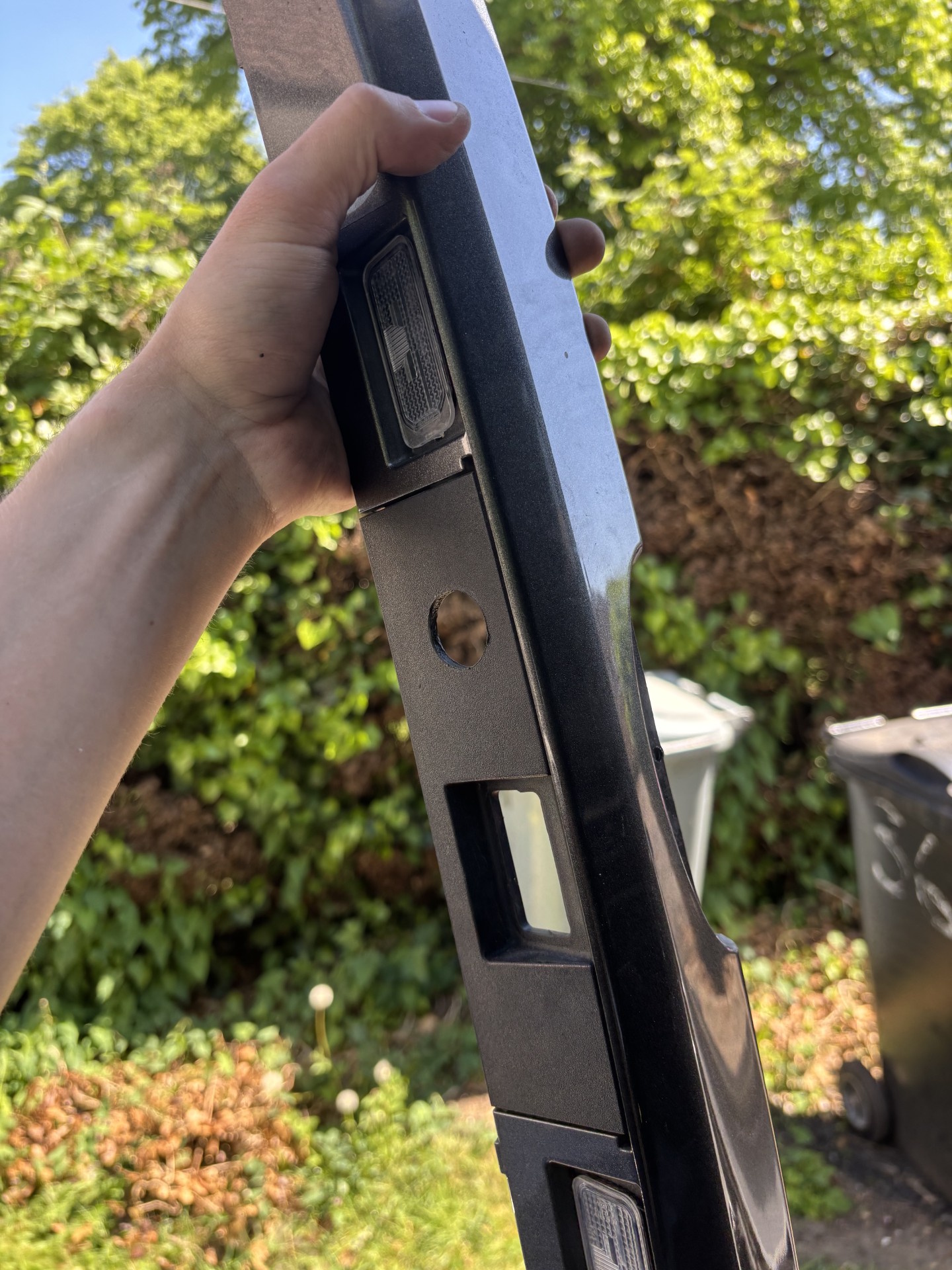

I needed to drill a hole into the outer trim for the camera.

Reversing Camera
2025-05-19

Reversing Camera In Action
2025-05-19

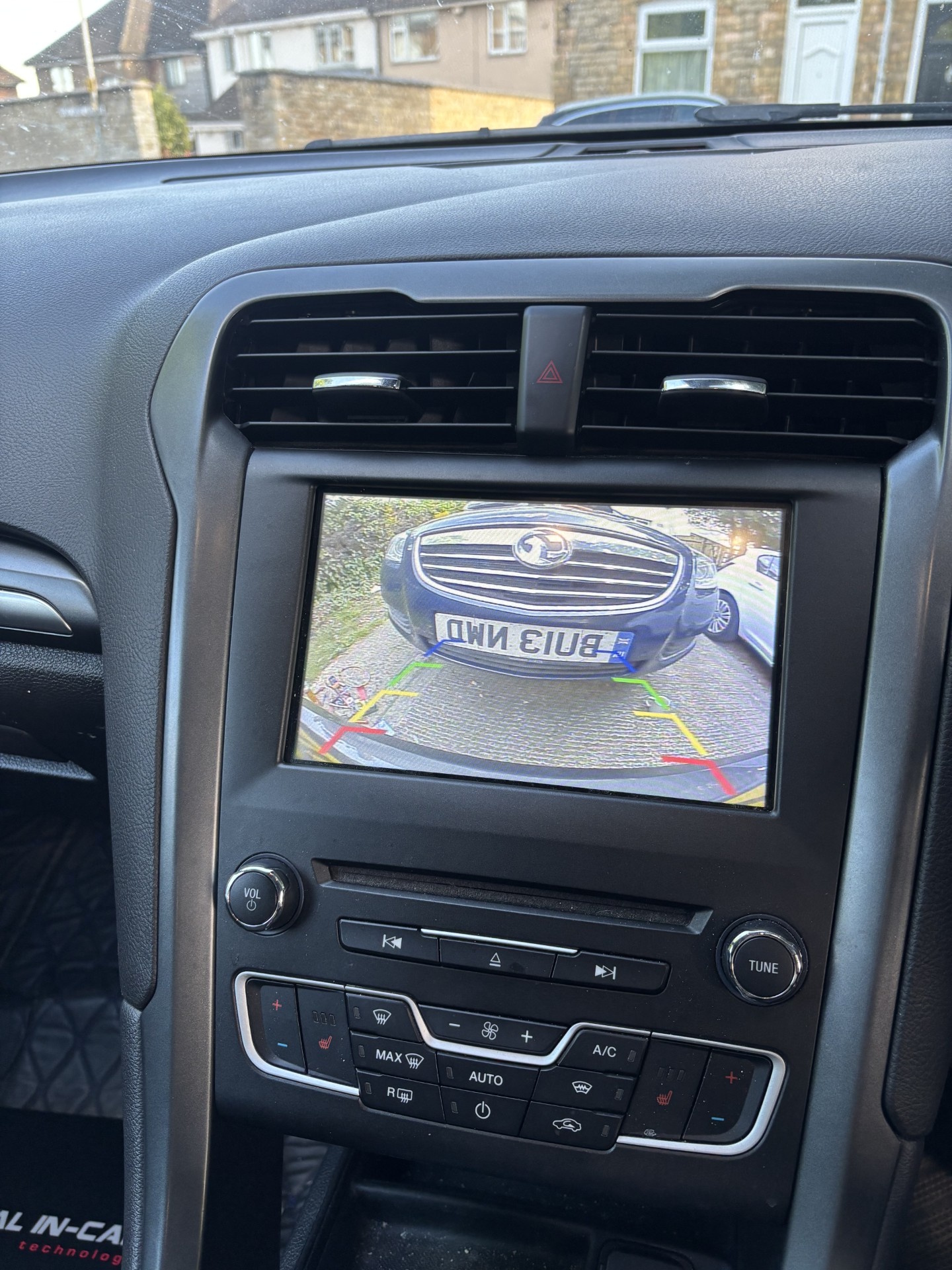

Here you can see my car in the OEM radio when selecting the reversing camera
